LANCED OFFSET FOLDED FINS

Material
Thickness
From 0.002" to 0.020"

Fins Per Inch
(Material dependent)
From 4 FPI to 40 FPI

Flow Length
(Slit Width)
From 0.375 to 20.00

Materials Used
Aluminum, Copper, Stainless Steel, Inconel, Others upon request

Configurations
Lanced and Offset (shown)
Ruffled/Lanced

lanced-fin-diagram-new

Download Fillable PDF and Email [email protected]

LANCED OFFSET FIN EXAMPLES

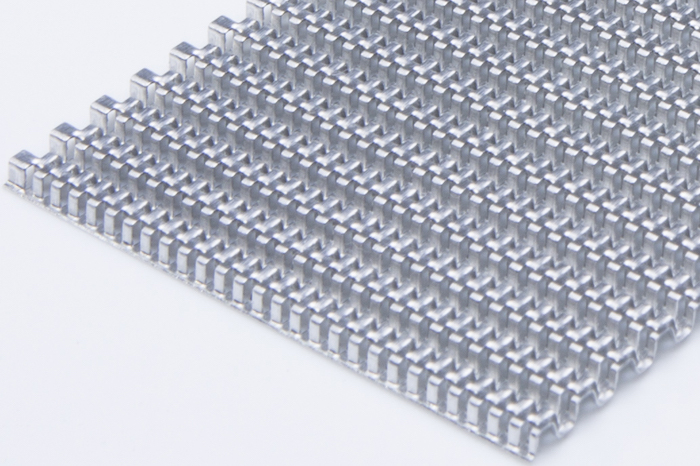

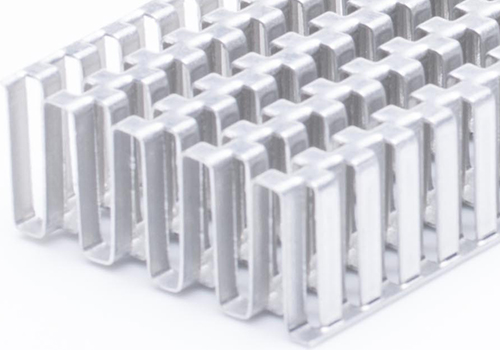

1/8″ Lanced Offset Aluminum

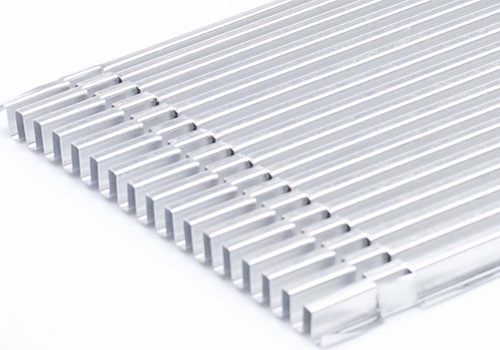

Variable Lance Aluminum

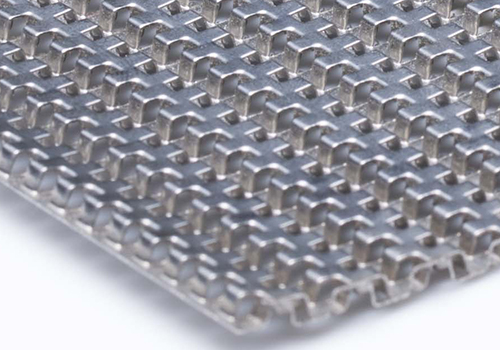

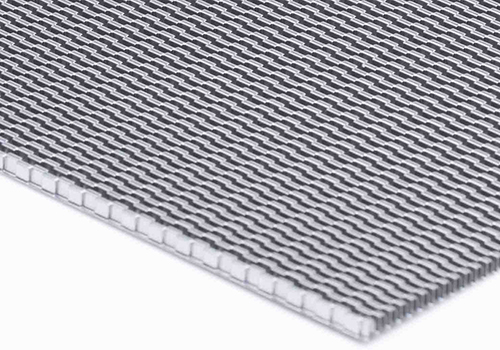

1/8” Lanced Offset Stainless Steel

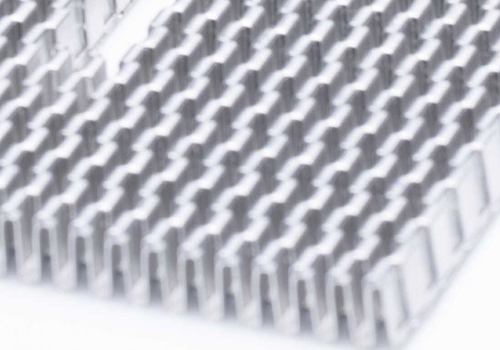

Lanced Offset EDM’d Aluminum

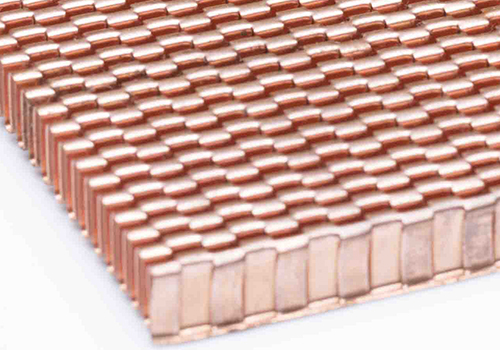

1/8″ Lanced Offset Copper

2 mm Angled Lance Aluminium

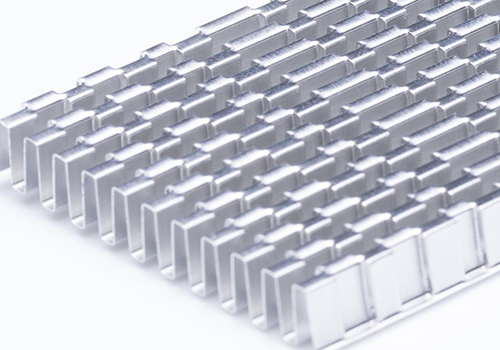

Variable lance length 18
